ch12-Spring Integration

EIP（Enterprise Integration Patterns，企业集成模式）

Enterprise Integration Pattern -

组成简介：https://www.cnblogs.com/loveis715/p/5185332.html

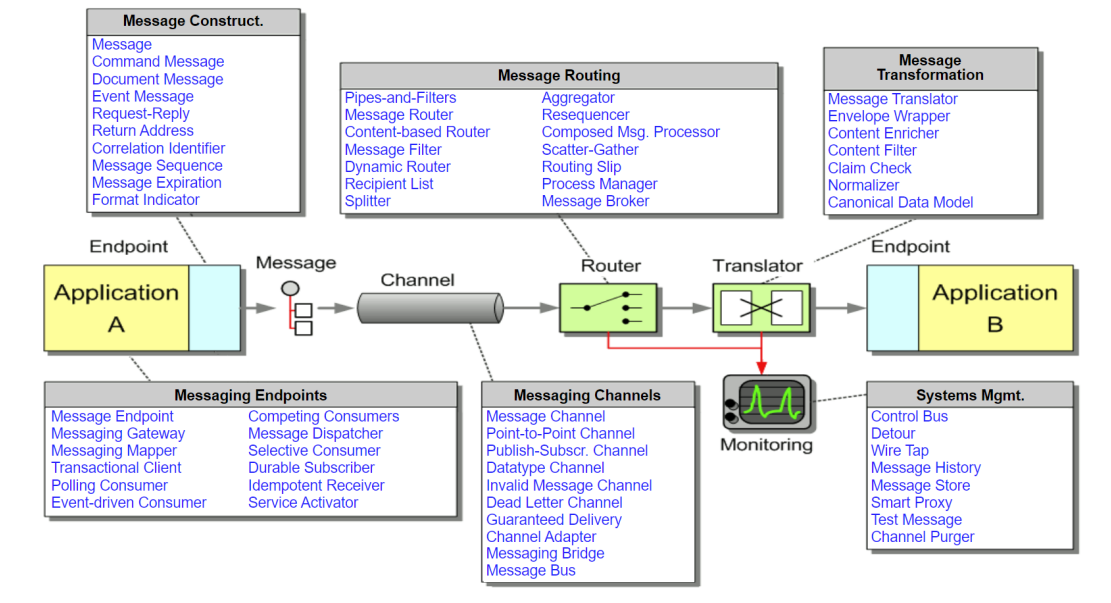

Integration Pattern Language

https://www.enterpriseintegrationpatterns.com/patterns/messaging/

spring integration

https://spring.io/projects/spring-integration

一个简单的集成流（例子）

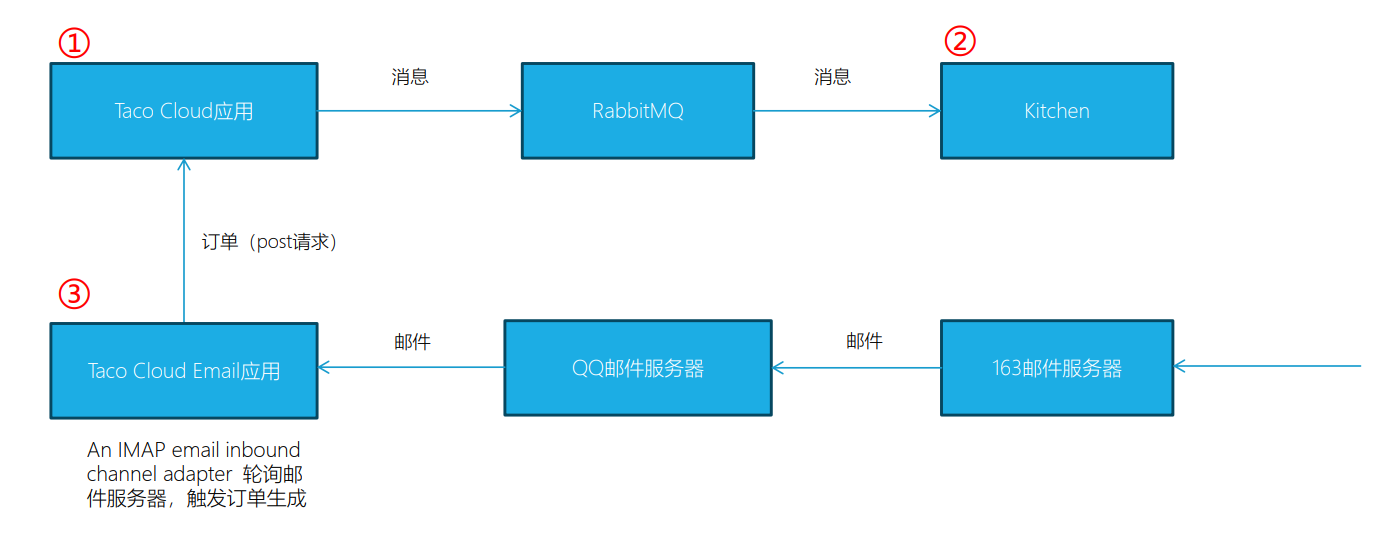

本节课目标

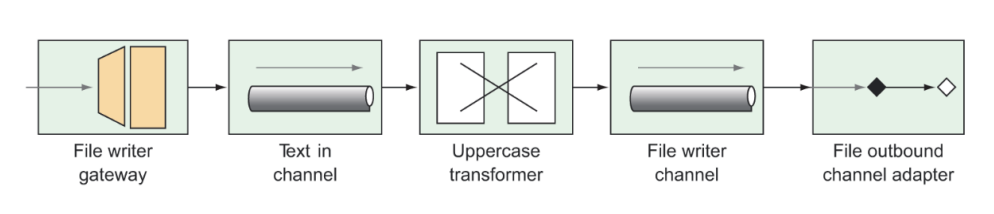

一个简单的集成流

集成流配置

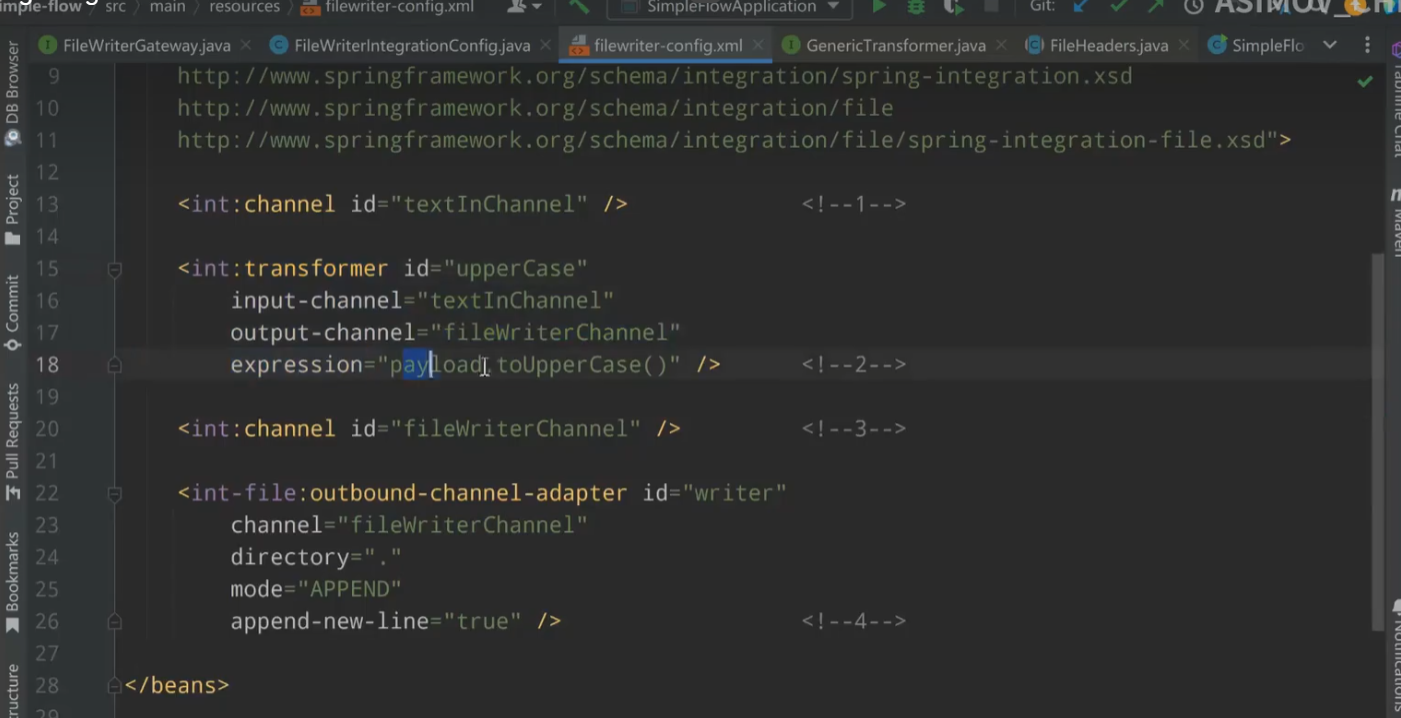

- XML配置
- Java配置
- 使用DSL的Java配置

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-integration</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.integration</groupId>
    <artifactId>spring-integration-file</artifactId>
</dependency>

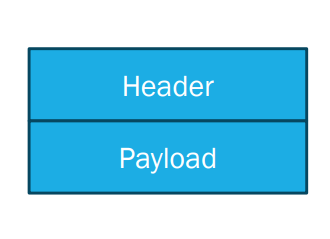

消息

集成流（ integration flow）

集成流的组件介绍

集成流的组件

Channels（通道） —Pass messages from one element to another.
Filters（过滤器） —Conditionally allow messages to pass through the flow based on some criteria.
Transformers（转换器） —Change message values and/or convert message payloads from one type to another.
Routers（路由器） —Direct messages to one of several channels, typically based on message headers.
Splitters（切分器） —Split incoming messages into two or more messages, each sent to different channels.
Aggregators（聚合器） —The opposite of splitters, combining multiple messages coming in from separate channels into a single message.
Service activators（服务激活器） —Hand a message off to some Java method for processing, and then publish the return value on an output channel.
Channel adapters（通道适配器） —Connect a channel to some external system or transport. Can either accept input or write to the external system.
Gateways（网关） —Pass data into an integration flow via an interface.

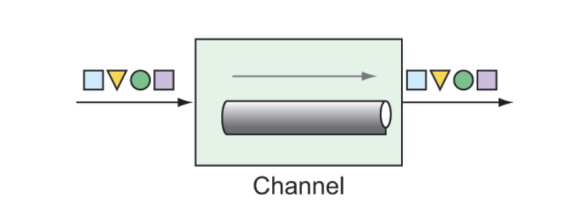

消息通道（Message channels）

PublishSubscribeChannel 1对多，1个发布多个订阅
QueueChannel FIFO
PriorityChannel 优先级队列，不按照FIFO出队
RendezvousChannel
DirectChannel（缺省）
ExecutorChannel
FluxMessageChannel

@Bean
public MessageChannel orderChannel() {
	return new PublishSubscribeChannel();
}

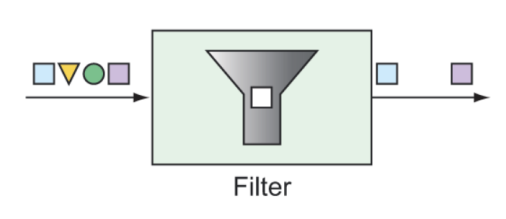

过滤器（Filters）

@Filter(inputChannel="numberChannel",
outputChannel="evenNumberChannel")
public boolean evenNumberFilter(Integer number) {
	return number % 2 == 0;
}

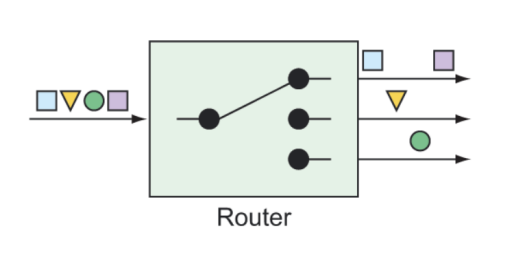

路由器（Routers ）

@Bean
@Router(inputChannel="numberChannel")
public AbstractMessageRouter evenOddRouter() {
	return new AbstractMessageRouter() {
		@Override
		protected Collection<MessageChannel>
			determineTargetChannels(Message<?> message) {
		Integer number = (Integer) 				  message.getPayload();
    		if (number % 2 == 0) {
    			return Collections.singleton(evenChannel());
    		}
    	return Collections.singleton(oddChannel());
    	}
	};
}
@Bean
public MessageChannel evenChannel() {
	return new DirectChannel();
}
@Bean
public MessageChannel oddChannel() {
	return new DirectChannel();
}

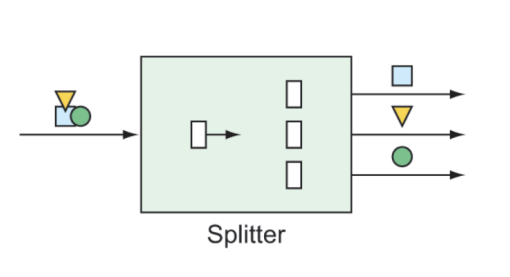

切分器（Splitters）

public class OrderSplitter {
    public Collection<Object> splitOrderIntoParts(PurchaseOrder po) {
        ArrayList<Object> parts = new ArrayList<>();
        parts.add(po.getBillingInfo());
        parts.add(po.getLineItems());
        return parts;
    }
}
@Bean
@Splitter(inputChannel="poChannel",
outputChannel="splitOrderChannel")
public OrderSplitter orderSplitter() {
	return new OrderSplitter();
}
@Bean
@Router(inputChannel="splitOrderChannel")
public MessageRouter splitOrderRouter() {
    PayloadTypeRouter router = new PayloadTypeRouter();
    router.setChannelMapping(
    BillingInfo.class.getName(), "billingInfoChannel");
    router.setChannelMapping(
    List.class.getName(), "lineItemsChannel");
    return router;
}

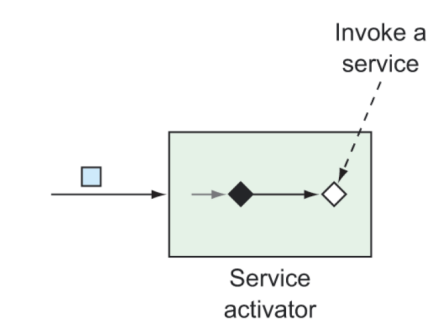

服务激活器（Service activators ）

MessageHandler实现

处理完流就截止

@Bean
@ServiceActivator(inputChannel="someChannel")
public MessageHandler sysoutHandler() {
    return message
    -> {
    System.out.println("Message payload: " + message.getPayload());
	};
}

GenericHandler实现

有返回值

@Bean
@ServiceActivator(inputChannel="orderChannel",
outputChannel="completeOrder")
public GenericHandler<TacoOrder> orderHandler(
		OrderRepository orderRepo) {
    return (payload, headers)
    -> {
    return orderRepo.save(payload);
    };
}

与transfomer的区别

transfomer：对数据进行转换加工
服务激活器：激活另一个服务，可能是存储或者外部的功能

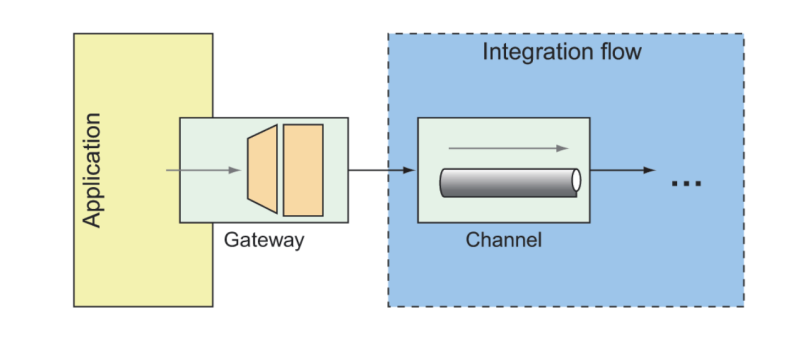

网关（Gateways ）

只需要写一个接口。
Gateways 是应用程序代码和消息系统之间的桥梁。它们抽象了消息发送和接收的细节，使得应用程序代码可以通过方法调用的方式与消息系统交互，而无需直接使用消息API。这样可以使应用程序代码保持简洁，同时也便于测试。

双向网关

requets channel 输入
repley channel 获得返回值（Spring会在这个管道上一直等，同步）

import org.springframework.integration.annotation.MessagingGateway;
import org.springframework.stereotype.Component;
@Component
@MessagingGateway(defaultRequestChannel="inChannel",defaultReplyChannel="outChannel")
public interface UpperCaseGateway {
	String uppercase(String in);
}
@Bean
public IntegrationFlow uppercaseFlow() {
    return IntegrationFlows
    .from("inChannel")
    .<String, String> transform(s
    -> s.toUpperCase())
    .channel("outChannel")
    .get();
}

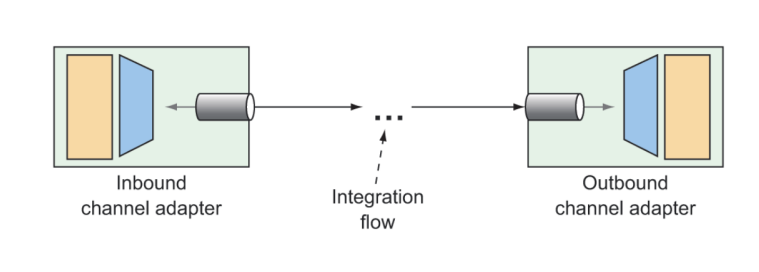

通道适配器（Channel adapters）

Adapters 则是用于将消息从一种格式转换为另一种格式，或者从一种传输协议转换为另一种传输协议。Inbound把外部系统的消息格式转为spring integration消息，outbound把spring integration消息转为外部系统消息。
例如，JMS适配器可以将JMS消息转换为Spring Integration通用消息，HTTP适配器可以将HTTP请求和响应转换为Spring Integration消息。

@Bean
@InboundChannelAdapter(
poller=@Poller(fixedRate="1000"), channel="numberChannel")
public MessageSource<Integer> numberSource(AtomicInteger source) {
    return () -> {
    return new GenericMessage<>(source.getAndIncrement());
    };
}
@Bean
@InboundChannelAdapter(channel="file-channel",
poller=@Poller(fixedDelay="1000"))
public MessageSource<File> fileReadingMessageSource() {
    FileReadingMessageSource sourceReader = new FileReadingMessageSource();
    sourceReader.setDirectory(new File(INPUT_DIR));
    sourceReader.setFilter(new SimplePatternFileListFilter(FILE_PATTERN));
    return sourceReader;
}

poller：多长时间触发一次，每秒触发一个消息的源头

通道适配器（DSL定义)

@Bean
public IntegrationFlow someFlow(AtomicInteger integerSource) {
    return IntegrationFlows
    .from(integerSource, "getAndIncrement",
    c -> c.poller(Pollers.fixedRate(1000)))
    ...
    .get();
}
@Bean
public IntegrationFlow fileReaderFlow() {
    return IntegrationFlows
    .from(Files.inboundAdapter(new File(INPUT_DIR))
    .patternFilter(FILE_PATTERN))
    .get();
}

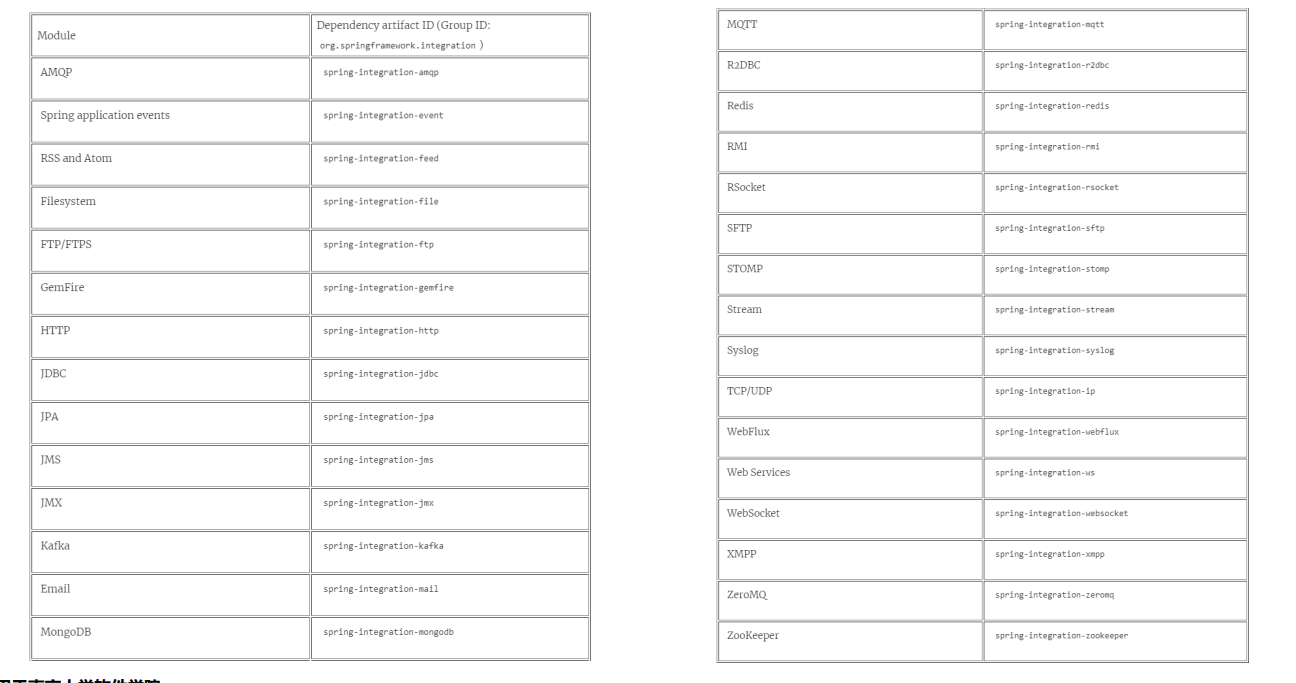

端点模块（Endpoint modules）

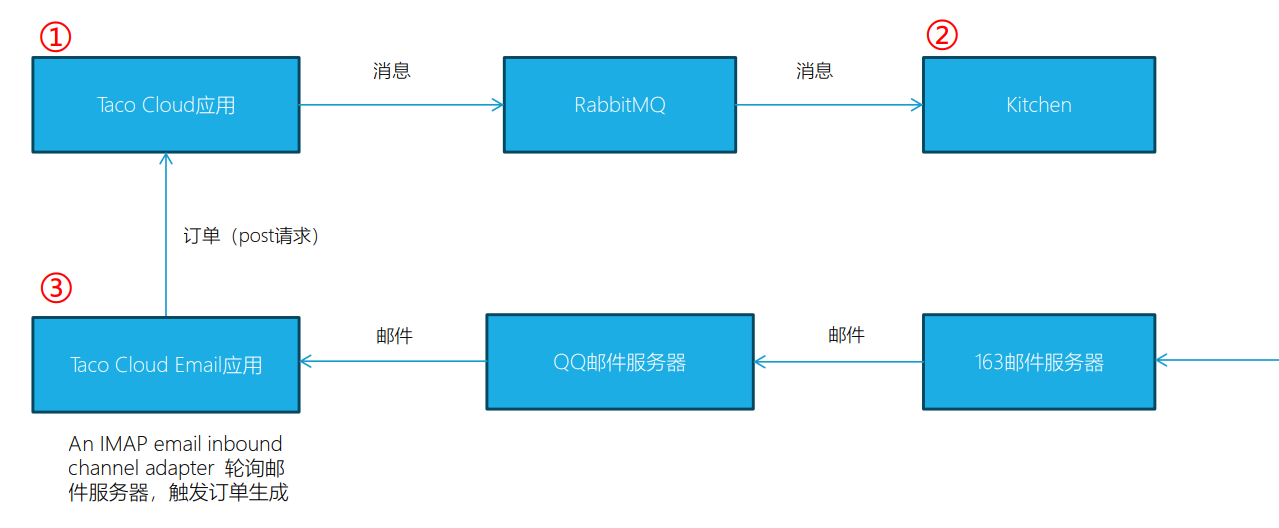

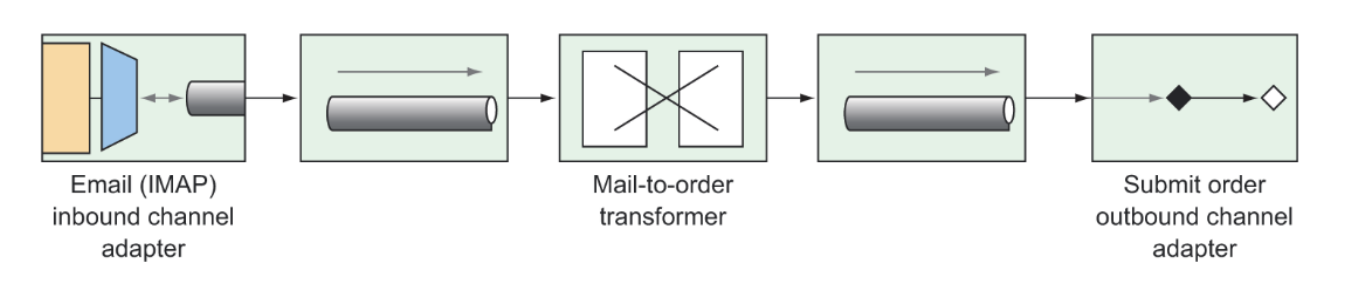

电子邮件集成流（本节课目标）

本节课目标

电子邮件端点模块

<dependency>
<groupId>org.springframework.integration</groupId>
    <artifactId>spring-integration-mail</artifactId>
</dependency>

构建集成流

TacoOrderEmailIntegrationConfig.java (DSL方式）

adaptor：

package tacos.email;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.dsl.IntegrationFlow;
import org.springframework.integration.dsl.IntegrationFlows;
import org.springframework.integration.dsl.Pollers;
import org.springframework.integration.mail.dsl.Mail;

@Configuration
public class TacoOrderEmailIntegrationConfig {

  @Bean
  public IntegrationFlow tacoOrderEmailFlow(
      EmailProperties emailProps,
      EmailToOrderTransformer emailToOrderTransformer,
      OrderSubmitMessageHandler orderSubmitHandler) {
    //创建集成流
    return IntegrationFlows
        .from(Mail.imapInboundAdapter(emailProps.getImapUrl()),
            e -> e.poller(
                Pollers.fixedDelay(emailProps.getPollRate())))
        .transform(emailToOrderTransformer)
        .handle(orderSubmitHandler)
        .get();
  }
}

transform(emailToOrderTransformer)：邮件的内容转成order对象

transformer

package tacos.email;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.integration.mail.transformer.AbstractMailMessageTransformer;
import org.springframework.integration.support.AbstractIntegrationMessageBuilder;
import org.springframework.integration.support.MessageBuilder;
import org.springframework.stereotype.Component;

import javax.mail.Message;
import javax.mail.MessagingException;
import javax.mail.internet.InternetAddress;
import java.io.IOException;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

@Component
public class EmailToOrderTransformer
        extends AbstractMailMessageTransformer<EmailOrder> {

    private static Logger log =
            LoggerFactory.getLogger(EmailToOrderTransformer.class);

    private static final String SUBJECT_KEYWORDS = "TACO ORDER";
    static  private  Map<String, Ingredient> map = new HashMap<String, Ingredient>();

    static {
        map.put("flourTortilla", new Ingredient("FLTO", "Flour Tortilla", Ingredient.Type.WRAP));
        map.put("cornTortilla", new Ingredient("COTO", "Corn Tortilla", Ingredient.Type.WRAP));
        map.put("groundBeef", new Ingredient("GRBF", "Ground Beef", Ingredient.Type.PROTEIN));
        map.put("carnitas", new Ingredient("CARN", "Carnitas", Ingredient.Type.PROTEIN));
        map.put("tomatoes", new Ingredient("TMTO", "Diced Tomatoes", Ingredient.Type.VEGGIES));
        map.put("lettuce", new Ingredient("LETC", "Lettuce", Ingredient.Type.VEGGIES));
        map.put("cheddar", new Ingredient("CHED", "Cheddar", Ingredient.Type.CHEESE));
        map.put("jack", new Ingredient("JACK", "Monterrey Jack", Ingredient.Type.CHEESE));
        map.put("salsa", new Ingredient("SLSA", "Salsa", Ingredient.Type.SAUCE));
        map.put("sourCream", new Ingredient("SRCR", "Sour Cream", Ingredient.Type.SAUCE));
    }
    @Override
    protected AbstractIntegrationMessageBuilder<EmailOrder>
    doTransform(Message mailMessage) throws Exception {
        EmailOrder tacoOrder = processPayload(mailMessage);
        return MessageBuilder.withPayload(tacoOrder);
    }

    private EmailOrder processPayload(Message mailMessage) {
        try {
            String subject = mailMessage.getSubject();
            if (subject.toUpperCase().contains(SUBJECT_KEYWORDS)) {
                String email =
                        ((InternetAddress) mailMessage.getFrom()[0]).getAddress();
                byte[] bytes = new byte[100];
                mailMessage.getInputStream().read(bytes);
                String content = new String(bytes);
                return parseEmailToOrder(email, content);
            }
        } catch (MessagingException e) {
            log.error("MessagingException: {}", e);
        } catch (IOException e) {
            log.error("IOException: {}", e);
        }
        return null;
    }

    private EmailOrder parseEmailToOrder(String email, String content) {
        EmailOrder order = new EmailOrder(email);
        String[] lines = content.split("\\r?\\n");
        for (String line : lines) {
            if (line.trim().length() > 0 && line.contains(":")) {
                String[] lineSplit = line.split(":");
                String tacoName = lineSplit[0].trim();
                String ingredients = lineSplit[1].trim();
                String[] ingredientsSplit = ingredients.split(",");
                List<Ingredient> ingredientCodes = new ArrayList<>();
                for (String ingredientName : ingredientsSplit) {
                    String code = ingredientName.trim();
                    if (code != null) {
                        ingredientCodes.add(map.get(code));
                    }
                }

                Taco taco = new Taco(tacoName);
                taco.setIngredients(ingredientCodes);
                order.addTaco(taco);
            }
        }
        return order;
    }
}
